Ultimate power solution for fast workflows

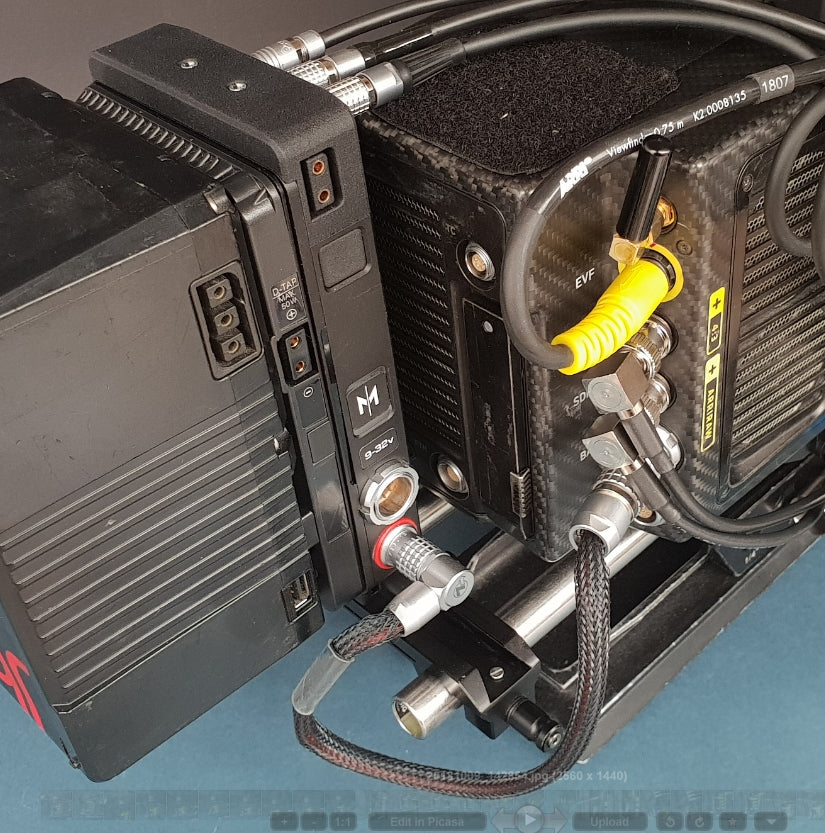

Initially designed for use on Steadicam with the Alexa Mini,the RS Booster also became the to-go solution for other setups, RED cameras, remote heads and 24v focus systems.
For speed improvements, sounds and details: RS Booster on set with a non-regulated rain deflector.>
sfsdfsf
Change to any usual battery mount in under a minute.
V-Mount, Gold-Mount or Hawk Woods 24v
Change to any usual battery mount in under a minute.
V-Mount, Gold-Mount or Hawk Woods 24v

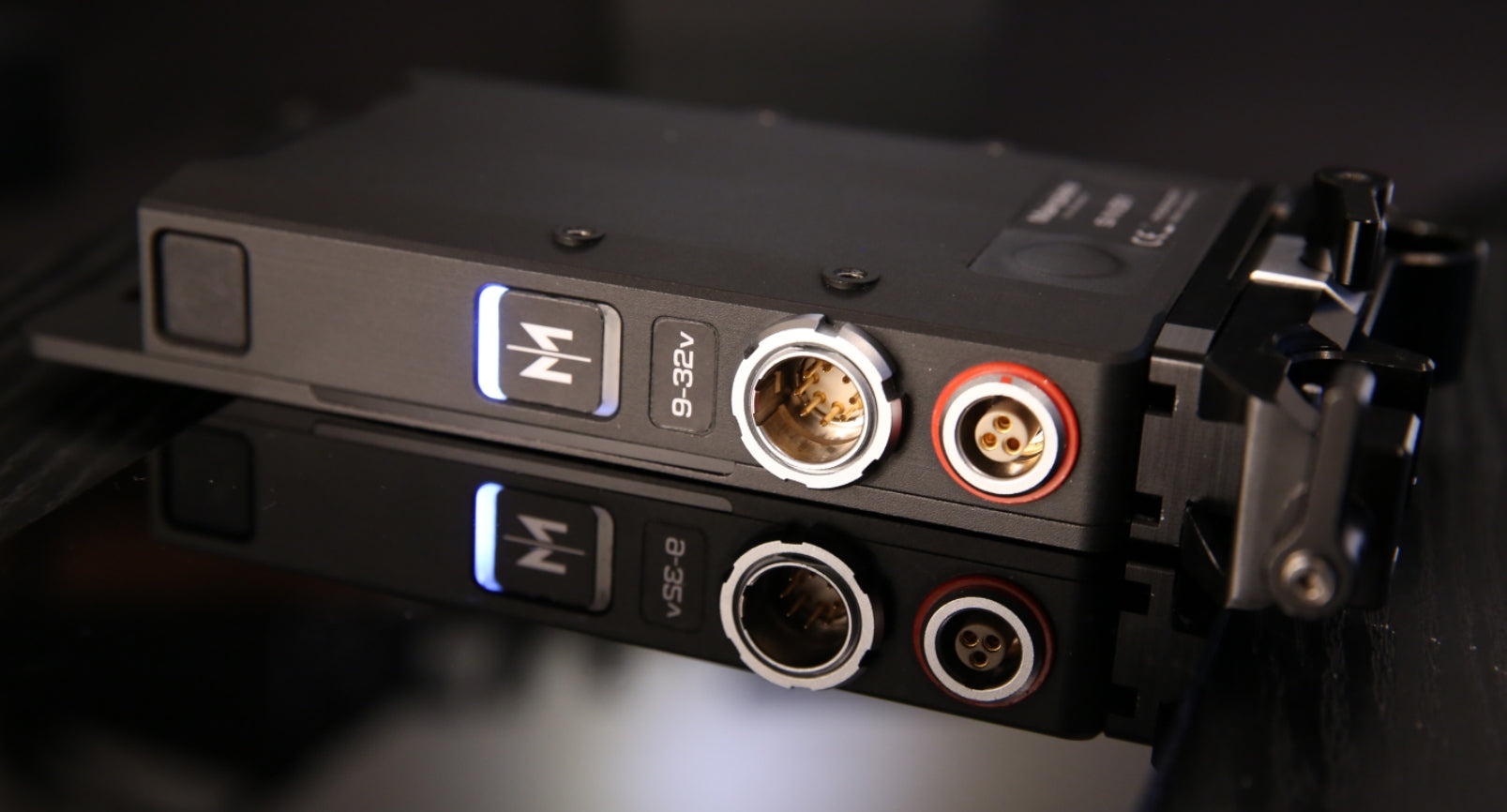

Battery input voltages between 9 -32v.
External battery prioritized input.
Overvoltage and overcurrent protection.
Reverse polarity protection with red led warning.
Never worry about PV/ARRI cable polarity again.
Fully regulated Lemo 12v/RS 24v outputs regardless of battery input (9-32v)
True 24 RS outputs and 12v – rain deflectors, gyro or any other 24v accessories
Powerport – 2x 2x 1x
Cableport – 1x 1x 1x - Loom
Custom ports for special setups

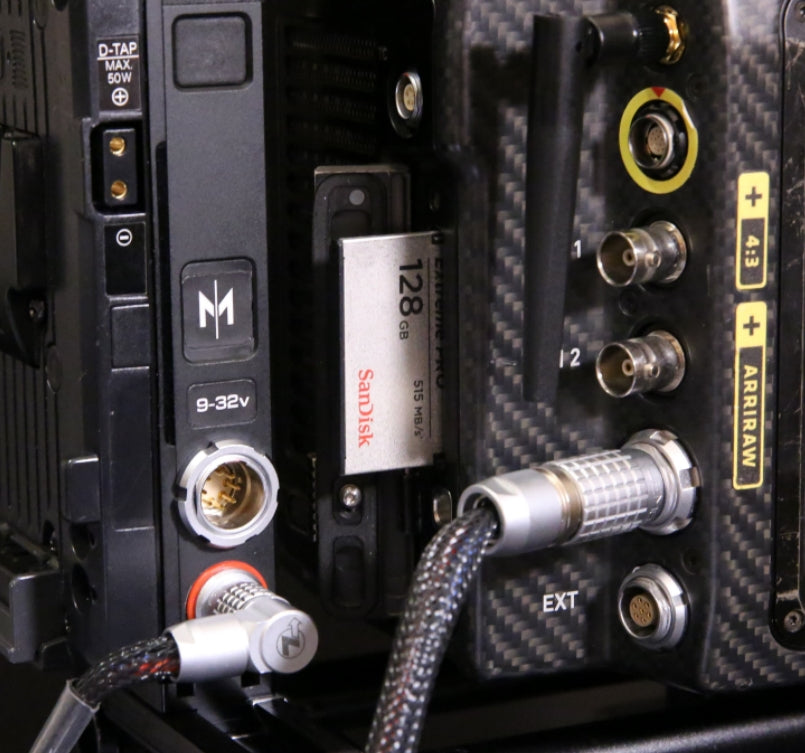

Enables quick access to the card slot
Offset lock for balancing on easyrigs and sensitive heads
Offset lock to the left for access to plugs
Designed for the ARRI RAB-1 Mount
Option to mount a sintered video TX holder
Custom mounts for handheld rigs, backpacks and other

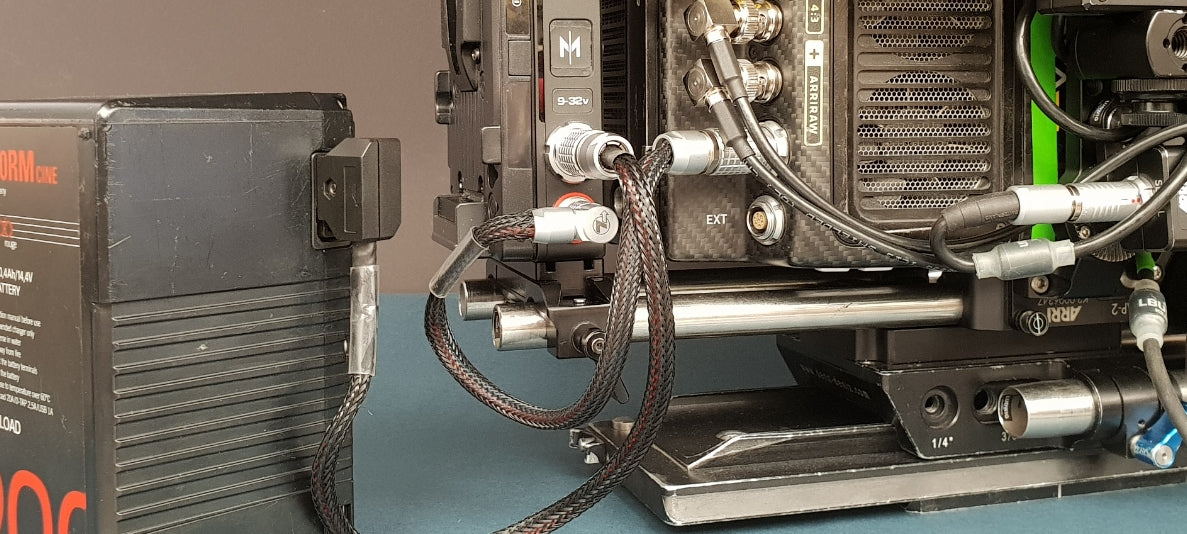

Use the full battery to hotswap.
Polarity protection will always assure safe operation.
Lighter, slimmer, more reliable and with no travelling restrictions due to no internal batteries.
Vestibulum fringilla pede sit amet augue. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Integer tincidunt. Vestibulum turpis sem, aliquet eget, lobortis pellentesque, rutrum eu, nisl. Suspendisse potenti.

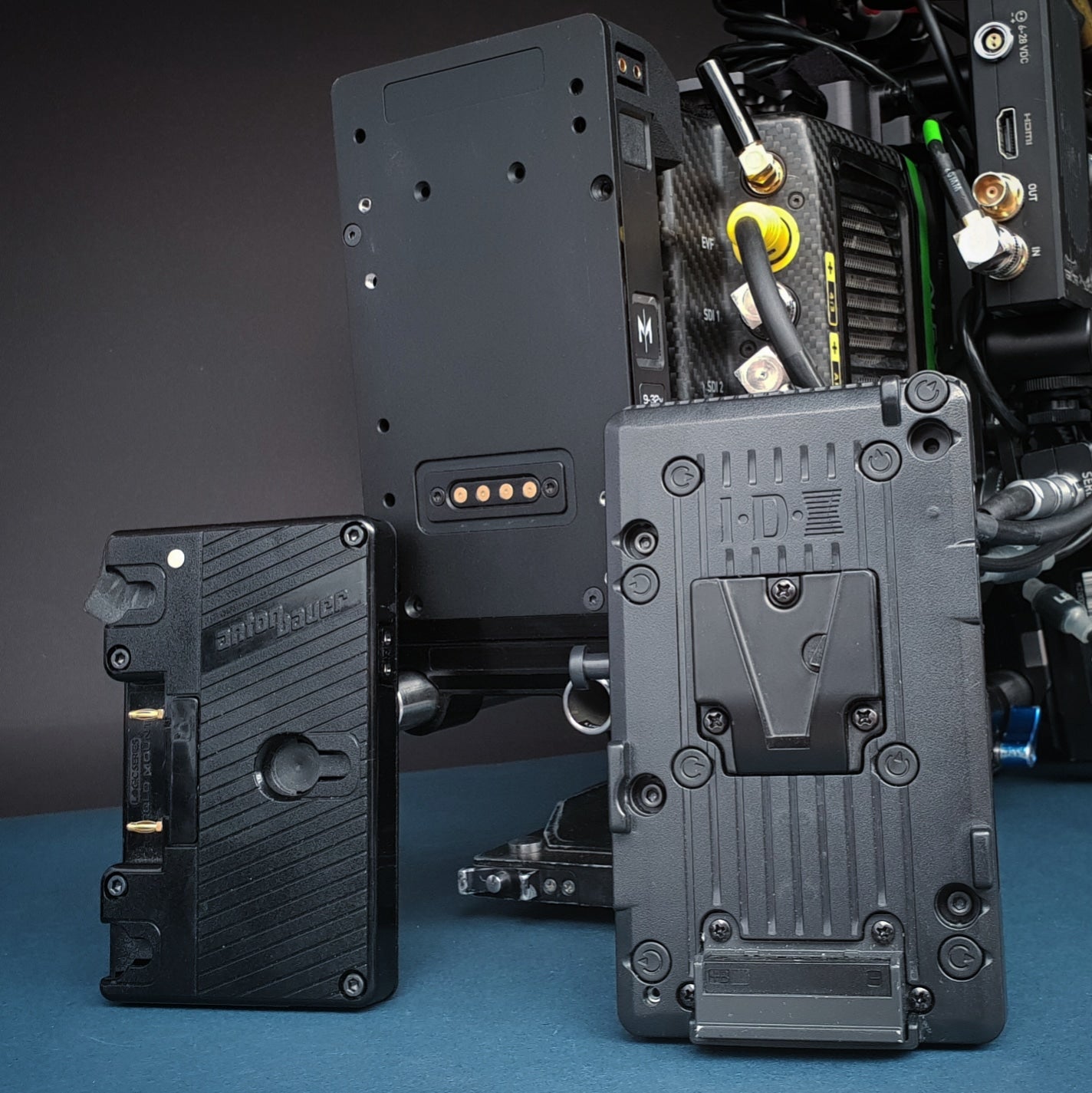

Swappable battery plates.
Prioritized wide range inputs with voltage thresholds
Regulated outputs and camera voltage thresholds

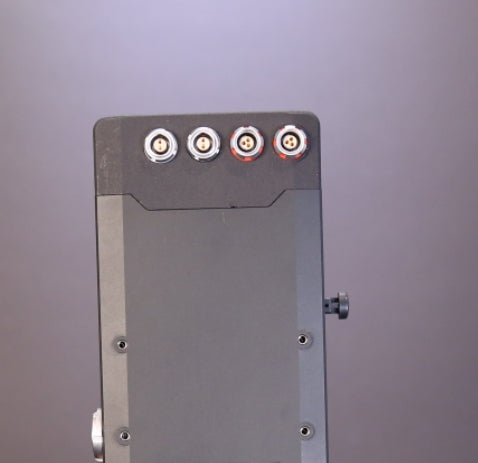

Modular power ports for custom setups
Cable loom for remote power

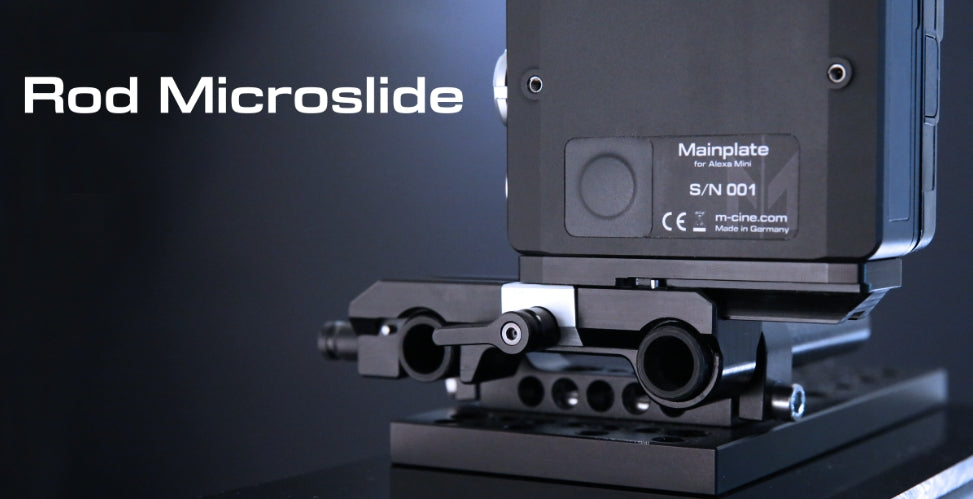

Rod Mount Microslide
Backmount for alternative options

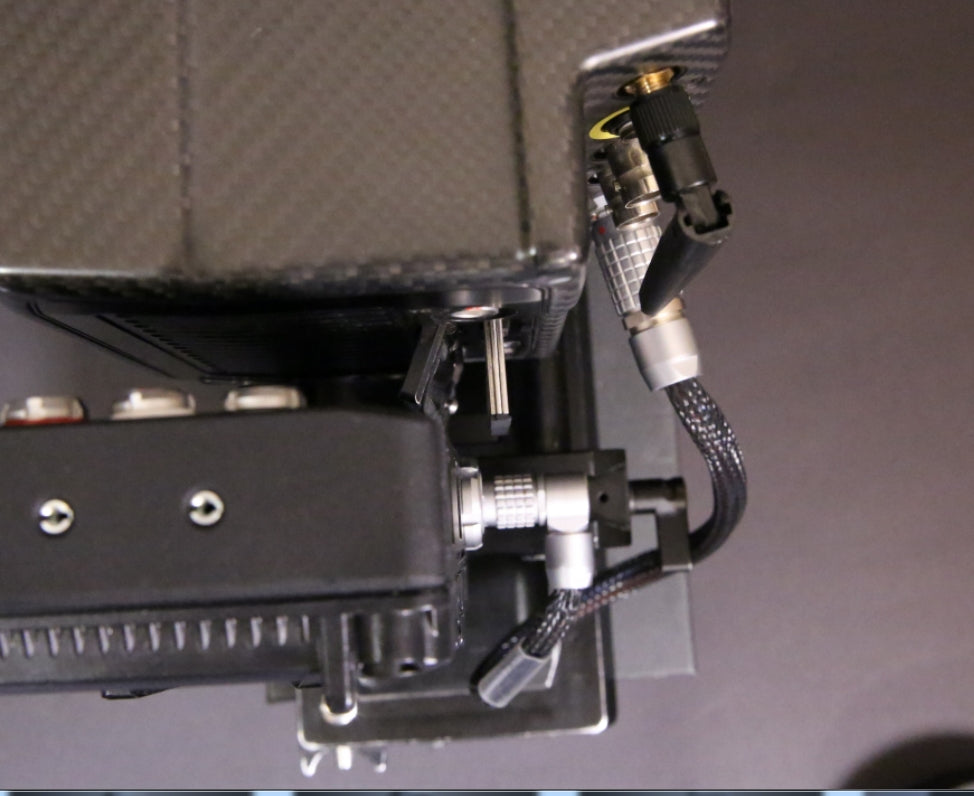

Cableswap with polarity protection
Package
Mainframe
Powerport
Cableport
15mm Microslide
Battery plates (VM,GM,HW)
MP-Cam cable
Hotswap Cable
Double extension loom cable
Pelicase
Safety features:
Overvoltage protection
Undervoltage cutoff
Overcurrent protection
Reverse polarity protection
Overcurrent and reverse current protection for each accessories output
Accessories pins auto disconnect when no port is connected.

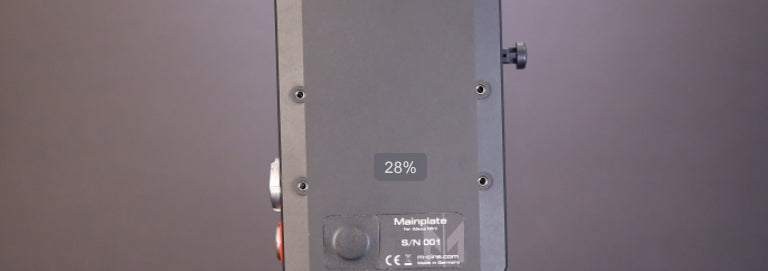

User indicators
